Corvette aerodynamics is the management of air around, through, and beneath the car. The goals can conflict: reduce resistance for efficiency and speed, limit unwanted lift, create useful downforce for stability and cornering, feed cooling systems, evacuate hot air, control wind noise, and keep the car practical. A splitter or wing is therefore never meaningful in isolation. It belongs to a complete flow field and a particular vehicle configuration.
To place Corvette Aerodynamics Explained for Everyday Drivers in a wider ownership and engineering context, continue with How to Prepare a Corvette for Its First Track Day.
This guide explains the physics in everyday language and shows how to evaluate factory and aftermarket claims. It uses published Corvette examples only with their stated model, package, and speed. It does not treat wind-tunnel-looking shapes as proof, transfer a Z06 or ZR1 figure to a Stingray, or recommend public-road speed testing.
Drag and lift are directions of aerodynamic force
Air pressure and friction act over every exposed surface. Engineers combine those effects into a net aerodynamic force. The component opposing travel is drag; the component perpendicular to the oncoming flow is lift. On a car, a downward perpendicular component is commonly called downforce. Side force also matters in crosswinds and cornering.
These names describe directions, not separate substances attached to a body panel. Changing a fascia opening can affect drag, front lift, cooling, and wake behavior at once. A component can reduce lift while adding drag, or improve cooling while costing top-speed efficiency. Good engineering judges the full consequence against the vehicle's mission.

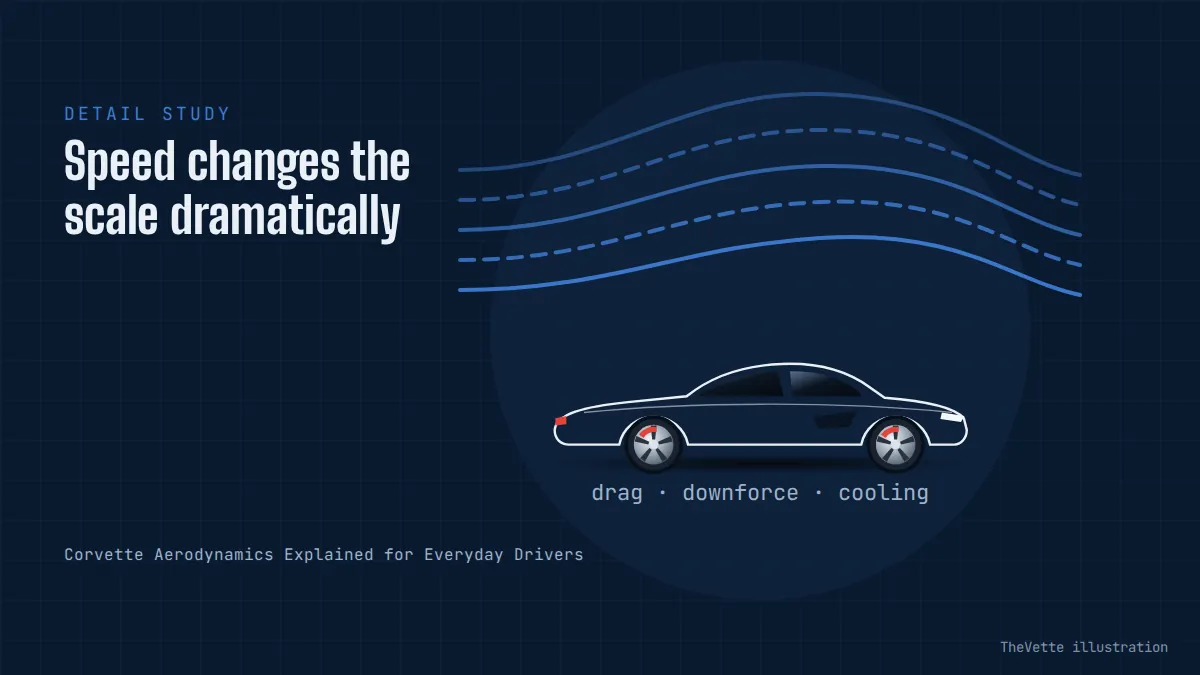

Speed changes the scale dramatically
The familiar force relationship contains air density, a coefficient representing shape and flow, a reference area, and velocity squared. Doubling speed under otherwise comparable conditions produces roughly four times the aerodynamic force. That is why an appendage may feel irrelevant in town yet impose substantial load at track speed, and why a published figure must retain its test speed.
Air density changes with altitude, temperature, and weather. Ride height, pitch, yaw, wheel rotation, cooling flow, surface condition, and nearby traffic can change coefficients. A number without configuration and method is not portable. Wind-tunnel, simulation, and controlled track measurements must model the relevant operating state to support a useful conclusion.
A low drag coefficient is only part of resistance
Drag coefficient expresses shape behavior relative to a chosen reference area. Total drag also depends on frontal area, so comparing coefficients alone can mislead when cars differ in width and height. Tire width, mirrors, cooling openings, underbody, wheel wakes, spoiler, and body attitude all contribute to the complete result.
A performance package may deliberately accept more resistance for brake cooling or high-speed grip. A sleek standard configuration may favor maximum speed and touring efficiency. Neither choice is universally superior. Ask whether a quoted coefficient includes the exact wheels, aero pieces, ride height, cooling shutters or openings, and measurement convention.
Pressure drag dominates many visible decisions
Air slows and builds pressure near the nose, accelerates around curved surfaces, enters openings, and eventually separates into a wake. The difference between pressure on forward-facing regions and the low-pressure wake contributes strongly to drag. Managing separation and wake size is often more valuable than polishing a small area.
Sharp edges can be intentional because they make separation occur in a predictable place. A clean cutoff at the tail may outperform a rounded surface that lets flow detach inconsistently. Designers coordinate roof taper, rear glass, quarter panels, spoiler, lamps, vents, and base area rather than relying on one “slippery” curve.
Skin friction is real but frequently overstated
Air touching the body forms a boundary layer in which velocity changes from nearly zero at the surface toward the free stream. Viscous shear creates skin-friction drag. Surface roughness, gaps, contamination, and flow condition influence it, but most street-car waxing claims do not document a measurable whole-vehicle result.
Keeping panels, undertrays, seals, and edges intact is still sensible. A loose liner or damaged deflector can disturb flow far more than normal paint texture. Cleanliness also helps spot leaks and fastener loss. Treat appearance products as protection and presentation unless controlled evidence demonstrates an aerodynamic benefit.
Front lift begins with pressure at and under the nose
The stagnation region at the front creates high pressure. If air enters beneath the car and slows or if pressure accumulates in the engine or heat-exchanger compartment, the resulting forces can unload the front axle. A front air dam, splitter, sealed duct, vent, or underwing can redirect flow and change the pressure distribution.
A splitter projects into higher-pressure air and helps separate upper and lower flow. Its effectiveness depends on shape, height, stiffness, sealing, floor treatment, and downstream recovery. A flexible cosmetic lip that bends at speed or leaks around its mounts may not act like the tested factory assembly.
A flow-through hood can combine cooling and force control
Air admitted for a front heat exchanger must leave somewhere. Dumping it into a crowded compartment can raise pressure and disturb underbody flow. A properly ducted hood exit offers a lower-pressure path, extracts heated air, and can reduce front lift. Chevrolet describes the C8 ZR1 flow-through hood as routing grille air through an intercooler heat exchanger and out through the hood to support cooling and front downforce.
This result depends on the complete duct and exit geometry. Cutting louvers into an arbitrary hood does not establish the same pressure path, water management, structure, or pedestrian and occupant safety. Radiator sealing and underhood components must remain compatible with the intended outlet.
The floor is an aerodynamic surface
Air beneath a low car interacts with ride height, rake, tire wakes, suspension openings, tunnels, strakes, and diffusers. Flat panels can reduce exposed-component drag and help preserve organized flow. Local acceleration may lower static pressure, but the system must manage boundary-layer growth and avoid abrupt separation.
Missing screws, torn closeout panels, incorrect jacking, or casually removed undertrays can change both aero and cooling. Inspect the floor after road debris or track curb contact. Replace hardware with the specified type and retain access panels; tape and improvised sheet material may detach into a tire or airflow.
A diffuser needs clean upstream flow
A rear diffuser expands an underbody passage, aiming to slow exiting air and recover pressure without separation. Its angle, length, fences, ground clearance, and inlet condition determine whether it works. Calling any finned rear trim a diffuser says nothing about actual pressure or force.
Exhaust heat, suspension movement, tire squirt, and wake interaction constrain production designs. Lowering the car or adding a forward obstruction can starve the diffuser or make it stall. Evidence should come from a complete-car test across relevant ride heights, not a photo of dramatic strakes.
Spoilers and wings perform related but different jobs
A spoiler modifies separation at the body surface, often by changing pressure over the rear deck and wake. A wing is an airfoil with flow around both surfaces and mounts that transmit load into the structure. Everyday language blurs the terms, but the mounting, flow environment, and balance consequences remain distinct.
Height can place a wing in cleaner air, while endplates influence spanwise flow. Angle changes force and drag, but more angle eventually causes separation and loss of efficiency. A wing mounted to a flexible cosmetic panel may deflect or damage the body instead of delivering repeatable load to the chassis.
A wickerbill is small but not automatically subtle
A wickerbill or Gurney flap is a short vertical tab near a trailing edge. It can alter pressure on both sides of an airfoil or spoiler and increase force, usually with added drag. Chevrolet specifies installable or adjustable wicker elements on certain Corvette packages, with their position and hardware forming part of the approved configuration.
Height, width, edge shape, fasteners, and the surface ahead matter. A home-cut strip that resembles the factory part has not inherited factory results. Follow model instructions because an incorrect setting can disturb front-to-rear balance or impose unexpected load on mounts.
Dive planes influence local and whole-car flow
Front-corner canards, often called dive planes, generate local force and vortical flow. They may help manage air around the front wheel or body side as well as contribute front downforce. Their value depends on yaw, ride height, nearby surfaces, and rear-aero pairing.
Adding large dive planes alone can shift balance forward and increase drag. Their protruding edges also create pedestrian, clearance, and attachment considerations. Factory carbon-aero packages validate them with the splitter, floor, wing, tires, springs, and calibration rather than offering them as universal decoration.
Balance matters more than a headline total
Downforce distribution between axles changes tire loading and high-speed handling. A large rear wing without adequate front support can create understeer; aggressive front aero without rear stability can make the car nervous. The aerodynamic center also can move as speed, pitch, steering angle, or flow separation changes.
A total force figure does not reveal axle split. Ask for front and rear values across speed and ride attitude, plus whether the car was in a standard or track-prepared configuration. Springs and dampers must support the added load without collapsing the designed platform.
Downforce does not increase grip one-for-one
Additional vertical load can increase available tire force, but tire load sensitivity means grip does not usually rise in direct proportion to load. Balance, compound, temperature, pressure, camber, road texture, and driver input remain essential. Aero also adds little at low speed because dynamic pressure is small.
This explains why a high-downforce car still needs appropriate tires and why an aero package may not shorten a slow autocross lap. It can provide larger benefits in fast corners and braking zones, provided the tires, suspension, and driver can use the load.
Cooling air is not free
Radiators, charge coolers, oil coolers, transmission coolers, and brake ducts require mass flow. Bringing air into the vehicle and changing its momentum creates resistance; NASA's drag explanation explicitly identifies cooling inlets as a source of ram drag. Engineers therefore size and seal openings to deliver needed flow without wasting pressure.
A larger opening can hurt if air bypasses the heat exchanger or cannot escape. Ducts, foam seals, shutters where fitted, fans, outlet areas, and downstream pressure determine effectiveness. Removing a grille because it “blocks air” can disrupt designed distribution or expose a core to damaging debris.
Mid-engine packaging changes the route
In C8 Corvettes, front and side openings serve heat exchangers, brakes, engine induction, and other circuits while the engine sits behind the cabin. Air may travel through long ducts, wheel areas, the floor, hatch inlets, or rear outlets. Each path competes for pressure and space while avoiding luggage, occupants, and suspension travel.
Chevrolet's ZR1 description illustrates this integration: side-profile ducts cool rear brakes without interfering with wheel travel, while coupe hatch inlets feed turbo compressor air. Those routes are model-specific and should not be generalized to every C8 opening.
Brake ducts require an inlet and a useful outlet
A brake-cooling system captures higher-pressure air and guides it toward the rotor or caliper region. The heated air must disperse through the wheel wake. Hose diameter alone does not prove performance; inlet pressure, bends, leakage, backing-plate aim, wheel design, and suspension clearance determine delivery.
Inspect ducts after tire service and track use. A displaced hose can rub a tire or driveshaft, while debris can block an inlet. Road use in heavy rain or winter may introduce water and contamination. Install only the configuration and restrictions supported by the relevant track guide.
Openings can create dirt and water tradeoffs
High-flow cooling paths collect leaves, stones, insects, and rubber. Protective screens can reduce impact damage but also add pressure loss, especially when clogged or mounted against a core. The effect varies with mesh area, wire thickness, placement, and required cooling margin.
Inspect from both sides without bending fins. Clean using approved low-force methods and preserve seals. A track car may need frequent service; a road car in leaf-heavy conditions may need a different interval. Monitor temperatures rather than assuming a modification is neutral.
Wheels and rotating tires generate difficult wakes
A rotating wheel pumps air, exposes spokes and brakes, and creates a turbulent wake that interacts with the body side and floor. Wider tires can increase frontal exposure and disturb flow even while adding mechanical capability. Wheel offset and shape also affect brake ventilation.
Flat covers may reduce drag in some applications but can trap brake heat or violate attachment requirements. Aftermarket wheels should be evaluated for load rating, clearance, mass, cooling, and tire fit before speculative aero gains. Never attach covers that can loosen at speed.
Ride height and rake change the aero map
The gap between splitter, floor, diffuser, and ground influences pressure and mass flow. Lower is not indefinitely better: the floor may choke or stall, the car may strike the surface, and suspension travel may disappear. Braking pitch and cornering roll cause the platform to move through an aero map rather than remain at a single showroom measurement.
Factory track settings, where offered, coordinate alignment and hardware with a validated height. Lowering springs, collars, or worn components change that relationship. Measure all corners on a level surface with specified load, then align and verify clearance dynamically.
Crosswinds and yaw reveal another dimension
Real air rarely approaches perfectly straight. Crosswind, passing trucks, steering angle, and cornering create yaw, exposing side surfaces and changing separation. A design that is efficient at zero yaw must remain predictable when flow arrives at an angle.
Large wings, endplates, vents, and open wheels can respond differently in yaw. A sudden steering correction is not a safe aero test. Investigate instability through tires, alignment, suspension, damage, loading, and wind conditions before assigning it to one body part.
Convertible and roof-off operation can differ
Removing a roof panel or lowering a convertible top changes cabin flow, noise, wake, and sometimes permitted speed or aero configuration. The windshield header, seats, windows, deflectors, tonneau, and rear deck participate. Coupe figures should not automatically be assigned to a convertible.
Secure the roof and storage exactly as instructed. Do not place loose objects where recirculating air can lift them. Consult the owner manual for window, top, luggage, and track-use restrictions. Comfort changes do not alone establish a dangerous aerodynamic condition, but abnormal movement or warnings require inspection.
Factory packages demonstrate system engineering
C8 Z06 illustrates staged support: its standard splitter and spoiler can accept a specified wicker, while the carbon-fiber package adds a larger splitter, dive planes, wing, and underbody strakes. Z07 then combines aero with specific tires, brakes, springs or chassis calibration. The published 734-pound downforce claim at 186 mph belongs to that defined track-capable context.
C8 ZR1 likewise separates a sleeker standard low-drag arrangement from high-downforce Carbon Aero or ZTK equipment. Chevrolet reports more than 1,200 pounds at top speed for the purposeful package, not for every ZR1 at every velocity. Its flow-through hood and cooling ducts are part of the result.
Historical Corvettes had different constraints
Early generations were shaped without today's computational resources, rolling-road tunnels, tire speeds, cooling loads, and regulatory tools. Designers learned through styling studies, testing, competition, and iteration. Later spoilers, flares, ducting, and smoother floors responded to rising speed and new performance missions.
Historical appearance and modern force control are different goals. A period-style spoiler may be valuable to authenticity without matching a current wing's performance. Research the exact model year and option before adding or deleting components, because original aero pieces can matter to both history and value.
Aftermarket claims need a testable configuration
Useful evidence identifies vehicle, ride height, tires, wheels, body pieces, cooling state, angle settings, speed range, measurement uncertainty, and front-to-rear forces. Computational images can guide development but require mesh, boundary conditions, turbulence model, rotating wheels, moving ground, and validation. Colorful pressure plots alone are not certification.
Track lap time is also a system outcome influenced by weather, driver, tires, fuel, traffic, and setup. Back-to-back data should control those factors and include speed traces and temperatures. Marketing phrases such as “race inspired” or “wind-tunnel tested” do not specify improvement.
Mounting strength is a safety requirement
Aero load rises with speed squared and can reverse or pulse over bumps and yaw. Splitters need stays and load paths that resist bending; wings need structures capable of transmitting load without tearing a hatch or fascia. Fasteners must resist vibration, corrosion, and pull-through.
Inspect before every event for cracks, looseness, delamination, scrape damage, and missing hardware. Never use an appendage as a step or tie-down. If a component contacts the road or becomes unstable, stop. A detached piece can puncture a tire or endanger another driver.
Street legality and insurance still apply
Protruding canards, sharp edges, width, visibility, license-plate obstruction, lighting, and bumper rules vary by jurisdiction. A track-only part may not be suitable for a public road. Modifications also can affect warranty decisions and insurance valuation or disclosure.
Keep installation instructions, invoices, material specifications, and photographs. Tell a buyer what is factory, replica, or custom. Do not use manufacturer package names for an unvalidated collection of look-alike pieces.
A practical inspection takes minutes
Before driving, walk around the splitter, deflectors, wheel liners, brake ducts, side intakes, rear spoiler or wing, diffuser, and underbody edges. Look for movement, gaps, rub marks, blocked openings, trapped debris, and fastener loss. Confirm adjustable pieces match the documented road or track position.
After a curb strike, off-course excursion, transport, or underbody service, repeat the inspection on a safe lift. Compare left and right mounting and photograph damage. A small displaced panel can affect cooling or touch a tire even when the car looks normal from standing height.
The best aero choice begins with the mission
A road-touring Corvette benefits from low drag, cooling margin, quietness, clearance, and stability. A track build may accept drag, cleaning, and component wear for high-speed balance. A preservation car may prioritize correct factory equipment. Define the use before buying visible carbon fiber.
Then demand complete evidence: correct package, qualified speed, axle balance, cooling consequence, structural mount, and matching tires and suspension. Corvette aerodynamics is powerful because the entire body manages air together. Respecting that integration produces better decisions than treating each vent, wing, or splitter as an independent promise.
